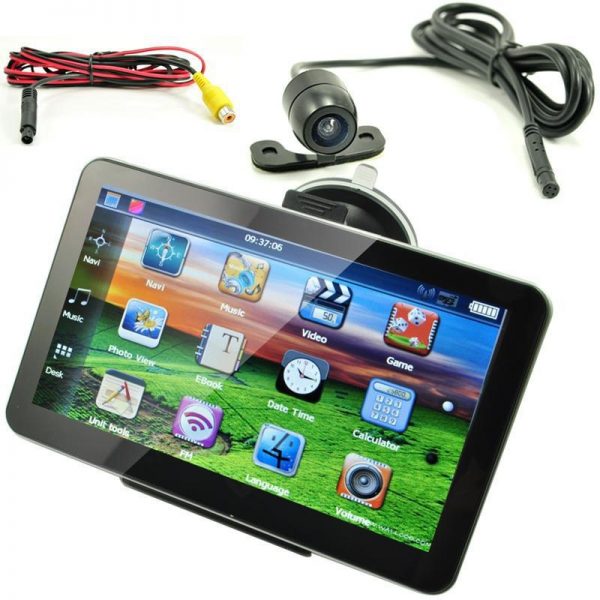

KMDRIVE 4GB 7” Touch Screen GPS Navigation with a Rearview Camera and Bluetooth & AV-IN Support
- This KMDRIVE 4GB 7” Touch Screen GPS Navigation with a Rearview Camera features the latest and most advanced CPU system to ensure smooth and stable use.

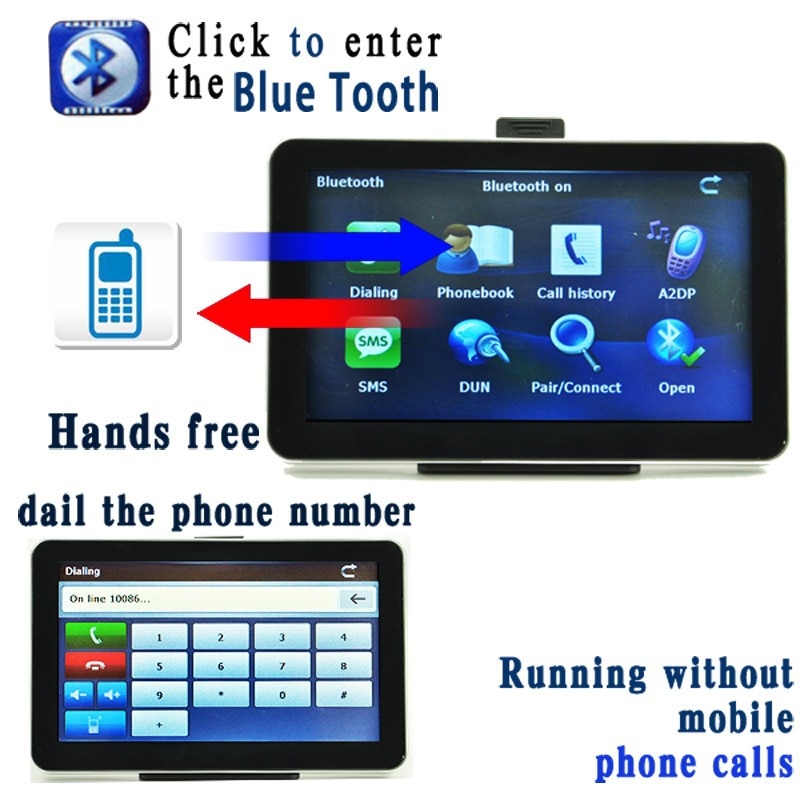

- It features Bluetooth, AV-IN and FM Transmitter support which allows you to make hands-free calls for your convenience.
- It has 2D and 3D NAVITEL & iGO Mapping Support with voice direction support for an accurate and more comfortable navigating experience.
- It has a built-in passive GPS antenna for more accurate navigation.
- This GPS system also includes other entertainment features such as video playing, audio playing, FM radio, photo viewing, E-Book reading, date, time, calendar, calculator, unit converter, etc.
- It features a built-in rechargeable lithium battery perfect for use when away from your car.
- This GPS system includes a comprehensive POI list. Its advanced POI management feature allows you to search, save, and load your own POIs and routes.
- It also comes with four pre-installed games such as linking, box man, Gobang, and Tetris (random setup).
- Item Type: Car GPS Navigation
- Shell Material: Durable Plastic & Metal
- Display Size: 7″ TFT True Color LCD Touch Screen
- Resolution: 800 x 480
- Operating System: WinCE 6.0
- CPU: Mstar
- CPU Frequency: 800 MHz
- RAM: 128MB
- Internal Capacity: 4GB Built-in Memory
- Card Slot: MicroSD Card Slot (up to 8GB. MicroSD Card is not included)
- Video Playback Formats: MPEG-4, Divx 5.0, 4.0, 3.11, Xvid and MPEG-2, ASF, AVI, WMV
- Audio Playback Formats: WMA9, MP3 and WAV
- E-Book Reading Formats: TXT.
- Picture Browsing Formats: E-Album JPG, GIF, BMP, PNG.
- GPS Model: Built-In High-Sensitivity GPS Receiver Chip
- GPS Antenna: Built-In Passive Antenna
- GPS Start Time: Cold Start: <42 Sec; Hot Start: <3 Sec (In The Open Area); Warm Start: <36 Sec
- GPS Accuracy: Position – Less Than 10 Meters (33 Feet), 95% Typical.
- Update Rate: Once Per Second (Continuously).
- Signal Channels: 22 Tracking / 66 Acquisition
- Tracking Sensitivity: -165dBm
- Position Sensitivity: -160 dBm
- Recapture Time: 1s
- Maximum Position Altitude: 18,000m
- Maximum Speed Rate: 515m/s
- Voice Navigation: Yes.
- Speaker: Built-In High Fidelity Speaker
- Microphone: Built-In Microphone
- Audio Output: 3.5mm Earphone Jack
- USB Port: Mini USB Jack/Charging Port
- Other Tools: Wallpaper, Date Time, Calendar, Calculator, Calibration, Unit Converter, etc.
- Power Supply: Built-In Rechargeable Lithium Battery (1500 mAh)
- AC Charger: 100/220V
- Car Charger: DC 12V
- LED Illustration:– In Charging: RED LED is ON, GREEN LED is OFF– Fully Charged: RED LED is OFF, GREEN LED is ON
- Operating Temperature: -10ºC to 60ºC
- Storage Temperature: 0ºC to 60ºC
- Working Humidity Range: 45% to 80% RH
- Storage Humidity Range: 30% to 90% RH
- Certification: CE, FCC, RoHS
- Dimensions: 18.1 cm x 11.2 cm x 1.3 cm (L x W x H)
- Menu Languages: English/Hebrew/Portugues/Magyar/Italiano/France/Espanol/Deutsch/Nederlands/Dan
sk/Svenska/Norsk/Pyccknn/Suomi/Polski/Slovenka/Turkish/Romana/Lietuva/Eesti/ and other languages*
*Please contact us to enquire about the availability of a particular language that you don’t see above. Also, note that the voice of the Navigation Software (the actual GPS voice and display languages) depends on the GPS software installed on the GPS unit.

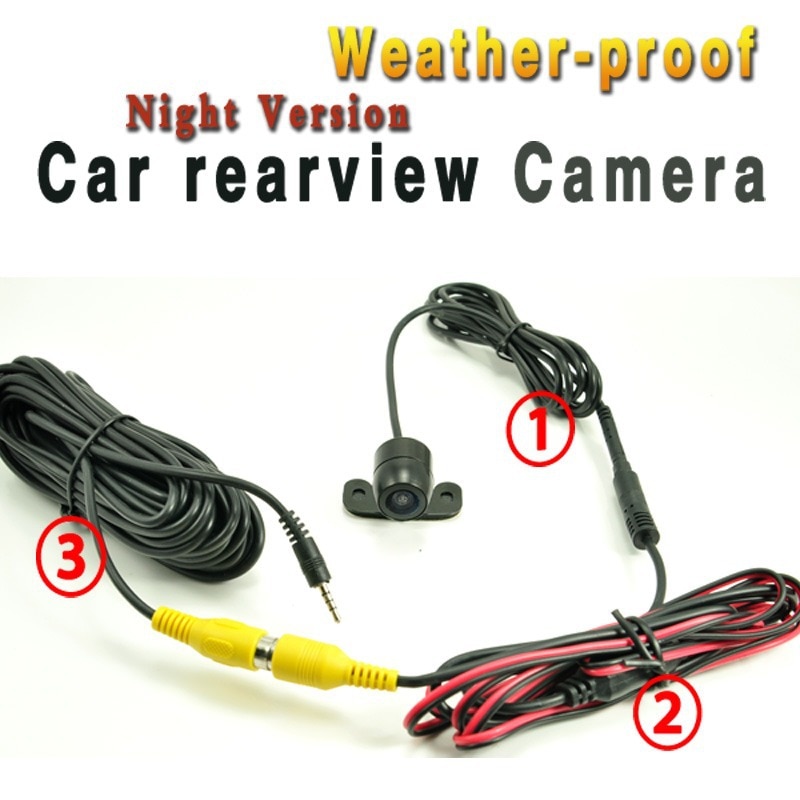

Rearview Camera Specifications:
|Electronic Shutter||1/50 – 1/100,000sec||1/60 – 1/100,000sec|
|Scanning System||2:1 Interlace|
|Lens Angle||2.8mm/120 – 1.8mm/170|
|Sensor Area||5.961mm * 4.276mm|
|Video Output||1.0Vp -p,75 Ohm|
|S/N Ratio||More than 48db|
|Minimum IIIumination||0.2Lux/F1.8(0 Lux With LED)|
|Current Consumption||No More 300mA|
|Power Supply||DC 12V10%|
|Operating Temperature||-20 degree to 60 degree (RH95% Max.)|
|Storage Temperature||-30 degree to 60 degree (RH95% Max.)|
|Other Items||Automatic white balance, Agc and BLC|
We have maps for the countries listed below;
Albania, Andorra, Austria, Armenia, Azerbaijan, Belarus. Belgium, Bosnia and Herzegovina, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Gibraltar, Greece, Hungary, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Moldova, Montenegro, Netherlands, Norway, Poland, Portugal, Romania, Russia, San Marino, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey, Ukraine, United kingdom, Vatican City
- North America:
United States, Canada, Mexico
- South America:
Brazil, Peru, Colombia, Uruguay, Chile, Argentina, Costa Rica, Venezuela
Australia, New Zealand
- Middle East:
Oman, Qatar, Kuwait, Saudi Arabia, UAE, Jordan, Bahrain, Lebanon, Iraq
Hong Kong, Macau, Thailand, Philippines, Indonesia, Singapore, Malaysia, Brunei, Vietnam, Kazakhstan, India, Sri Lanka .
Angola, Benin, Botswana, Burundi, Ivory Coast, Egypt, Kenya, Lesotho, Malawi, Morocco, Mozambique, Namibia, Nigeria, Reunion, Rwanda, South Africa, Swaziland, Tanzania,
Tunisia, Uganda, Zambia, Zimbabwe
- The GPS unit will be shipped out to you preloaded with only one map of the country of your shipping address, or of a different country of your choosing. If you want us to upload a map of a different country then please contact us.
- We can’t preload all the maps of all countries at once since the 4GB built-in memory is not enough to upload all the maps listed above.
- KMDRIVE 4GB 7” Touch Screen GPS Navigation x1
- Car Mounting Bracket x1
- Car Charger x1
- USB Cable x1
- Rearview Camera x1
- Power Cable x1
- AV Cable (2.5 mm AV plug) x1
- User Manual
